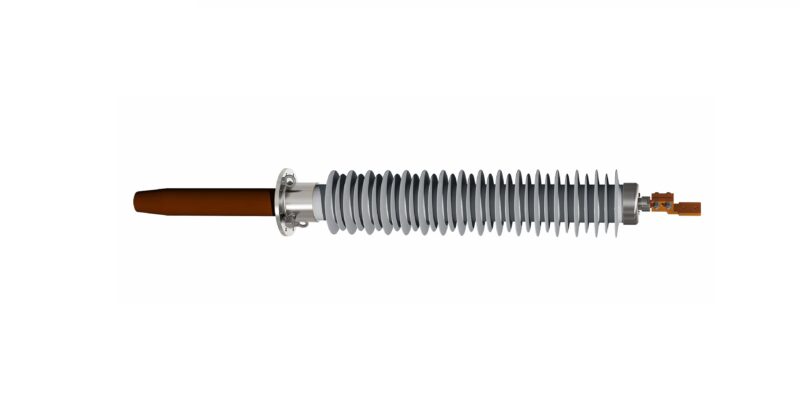

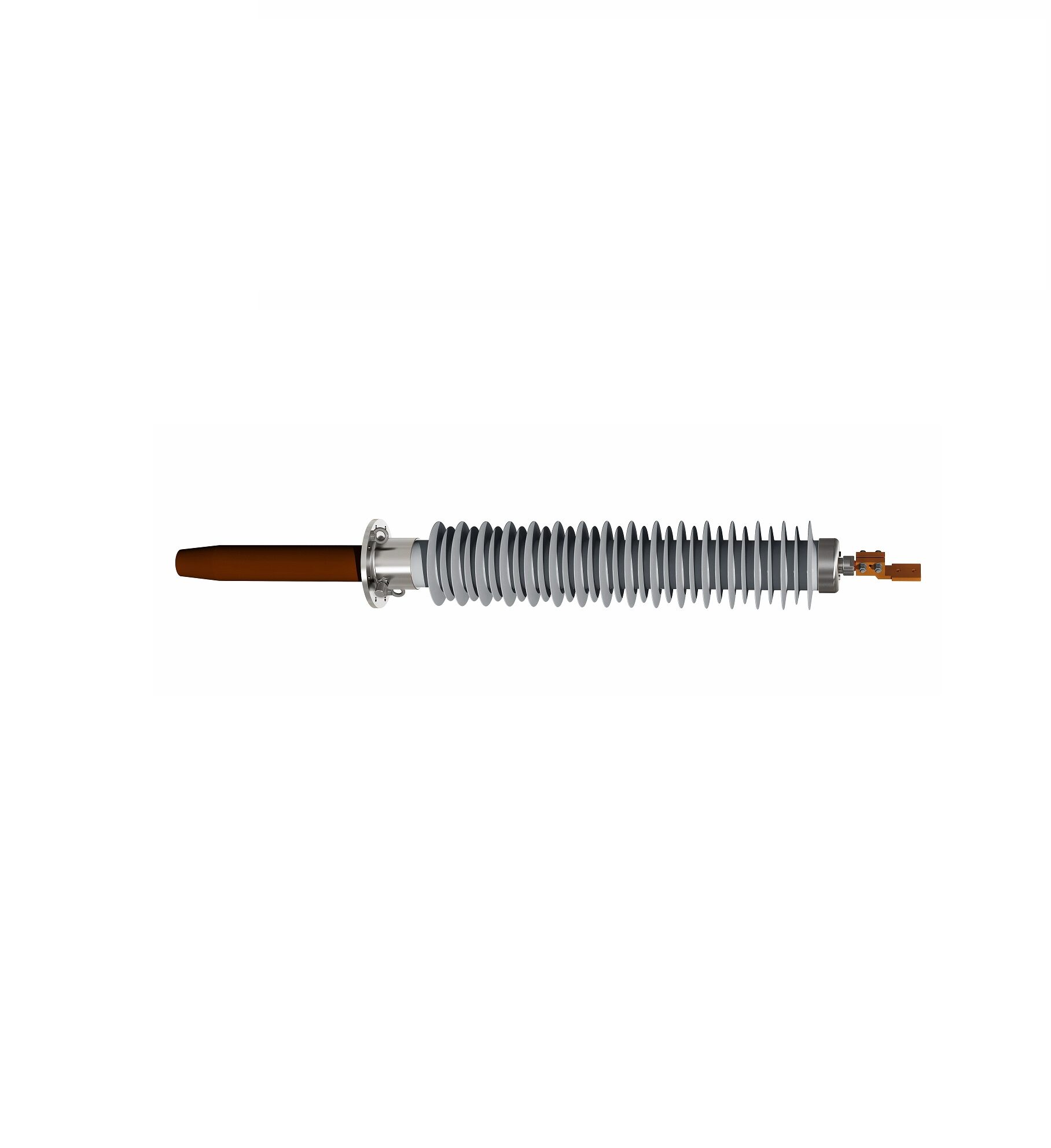

High-voltage bushings for BRIT-type transformers are transformer bushings consisting of an RIP core, porcelain or polymer external insulation, and filled with dry insulating material.
BRIT transformer bushings can be supplied as replacements for previously installed bushings on power transformers, including those from other manufacturers, or for installation on new power transformers.
Voltage class: 35 kV, 110 kV, 150 kV, 220 kV, 330 kV
Rated current: 800 A, 1000 A, 1250 A, 1600 A, 2000 A

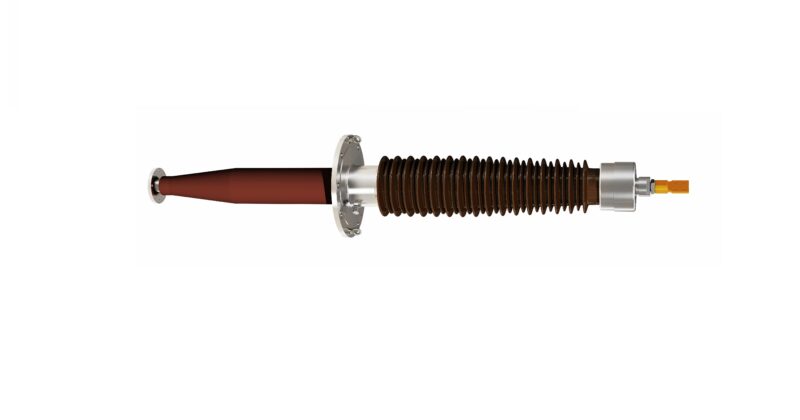

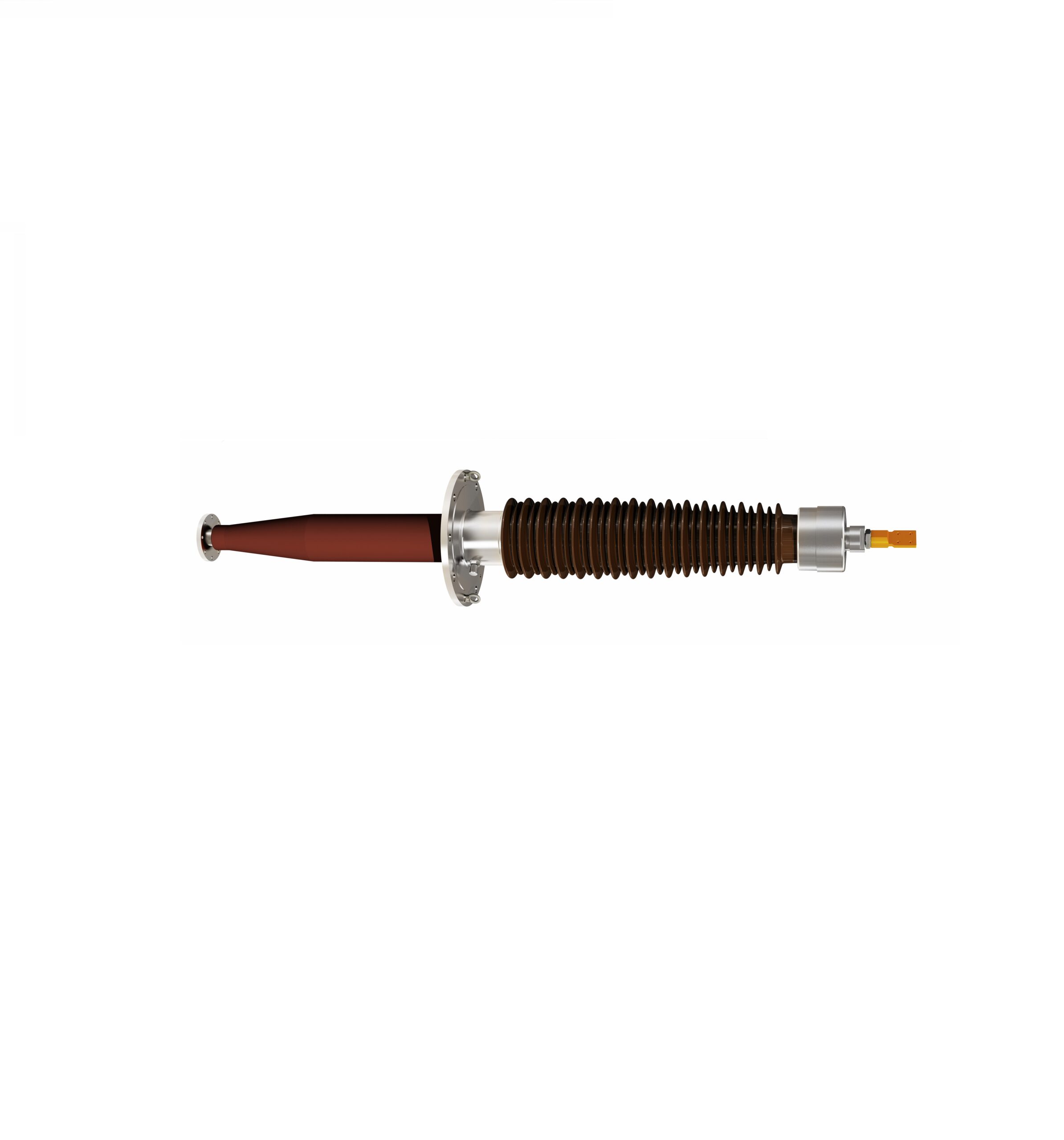

Switching bushings consist of an RIP core, porcelain or polymer external insulation, and are filled with dry insulating material.
BRIB(S) bushings are designed for installation on oil tank circuit breakers (as replacements for older bushing designs).
Voltage class: 35 kV, 110 kV, 220 kV
Rated current: 1000 A and 2000 A

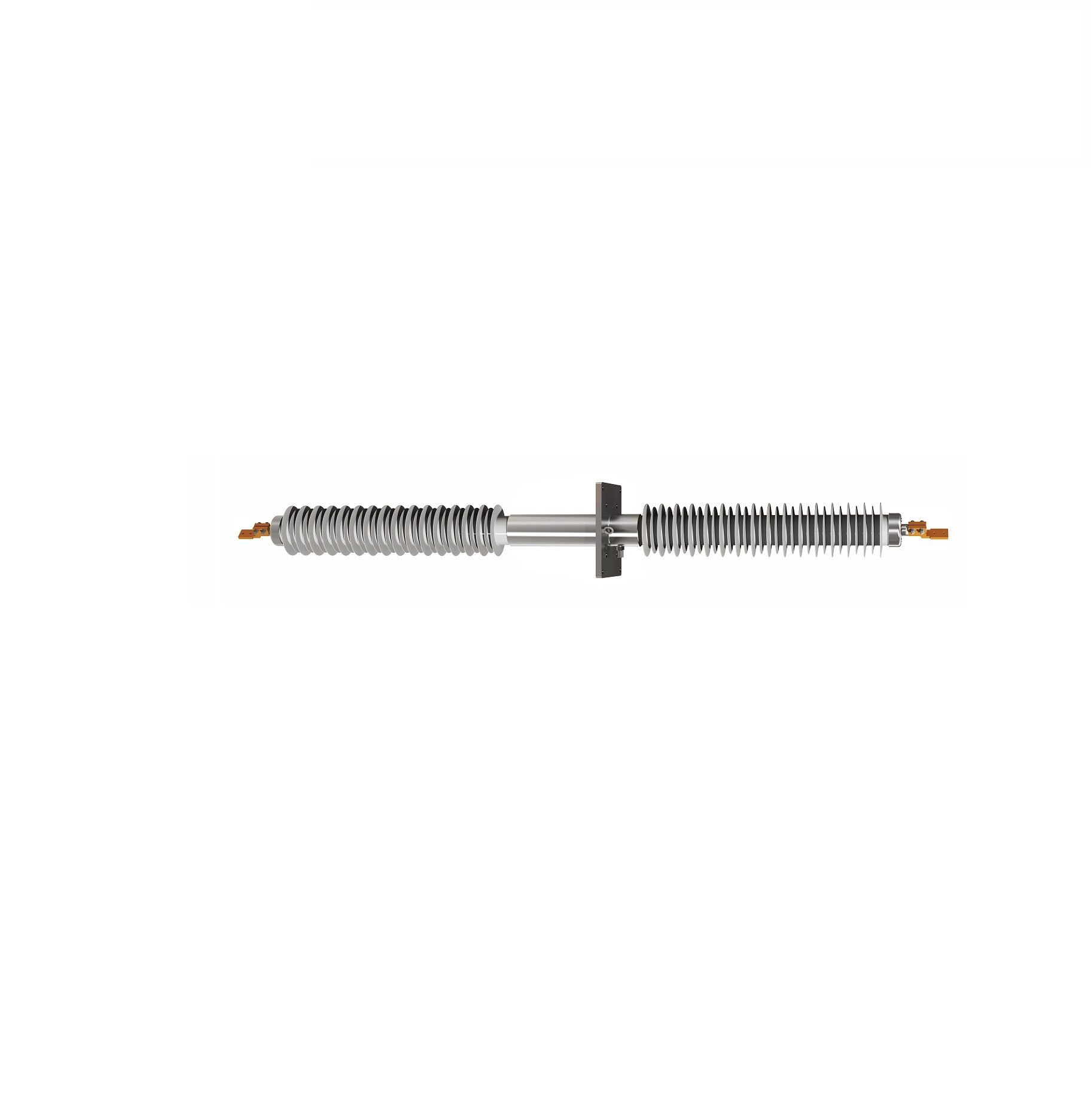

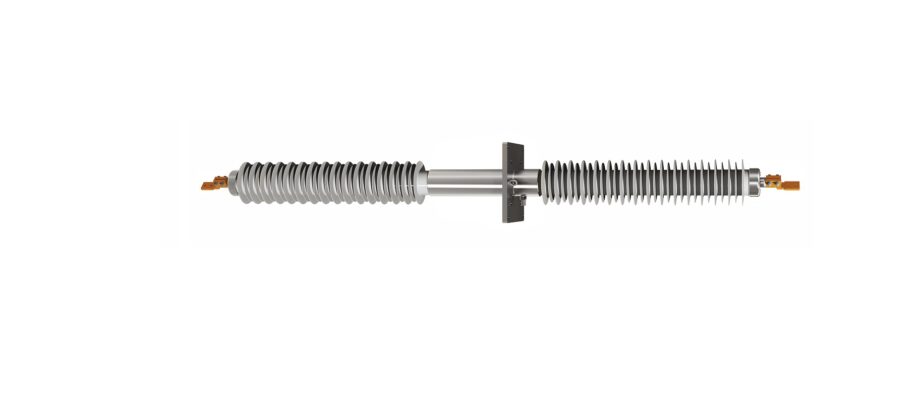

BRIL(S) bushing is a line bushing consisting of an RIP core, porcelain or polymer insulation, and filled with dry insulating material.
BRIL(S) bushings can be supplied as replacements for previously installed bushings, including those from other manufacturers, as well as for new projects.
Voltage class: 110 kV, 220 kV
Rated current: 1250 A, 2000 A, 3150 A
